Description

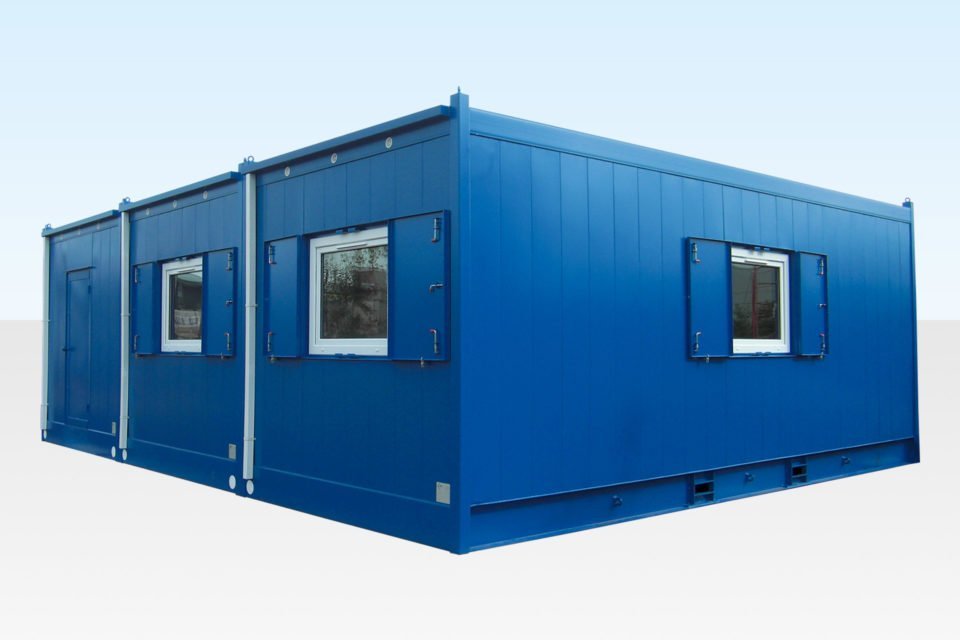

3-Bay Anti-Vandal Modular Building
This is a demountable steel modular system rather than a container conversion. Modules come in 24ft, 32ft and 40ft lengths at a standard 10 ft width, and they link both end-on-end and side-by-side to form clear open-plan floor area — up to three storeys where the site and the design allow.
The point of an anti-vandal build is that it is all steel and it comes apart again. Flat-sided exterior panels take a hard knock and can be painted to any color; the close-coupled linking system means units from our standard steel cabin range bolt onto the same building. When the project ends, the building is dismantled, moved and re-erected rather than written off — which is what makes it the sensible choice for a compound with a finite life.
Note on the quoted price: it covers supply and delivery of a 3-bay open-plan 32ft x 30ft building. Final on-site installation and cranage into position are arranged separately and are not included. Larger sizes, custom internal layouts and additional options are available at extra cost — and 40ft modules include internal columns, which affects how open the finished span really is.
System and options
- All-steel construction with flat-sided exterior panels
- Module lengths of 24ft, 32ft or 40ft at a standard 10 ft width
- Stacks up to three storeys; links end-on-end and side-by-side
- Designed to be dismantled, relocated and re-used
- Close-coupled linking system accepts standard steel cabins onto the same building
- Exterior finish painted to any color of your choice
- Interior layout to your design, including WCs, showers and welfare facilities
- Increased insulation and ECO options available
- 40ft modules include internal columns
- Quoted price covers supply and delivery only — installation and cranage arranged separately
- Covered by our standard 12-month warranty
Related Units And Next Steps
Where a longer design life and building regulation compliance are needed, compare this against the 3 bay compliant modular building. If lead time matters more than specification, the panel-based 6 bay Euro modular building builds faster, and a refurbished 3 bay modular building covers the same footprint at a lower outlay. See the wider site cabins and modular buildings range, and read our delivery information before booking a date, since cranage into final position is arranged separately.
Product Specifications
| External Length (m) | 9.655 |
|---|---|
| External Width (m) | 8.835 |
| External Height (m) | 3.03 |
| Internal Length (m) | 9.363 |
| Internal Width (m) | 8.543 |
| Internal Height (m) | 2.4 |
| Door Width (m) | 0.81 |
| Door Height (m) | 1.96 |
