Description
8m End-Linked Flat Pack Store (Powder Coated)
This bundle joins two 4 m powder-coated stores end to end with a linking kit, producing a single 7.56 m (24 ft 10 in) internal run. It exists for one reason: long materials. Pipe, timber, scaffold tube, ducting and conduit will not go into a 4 m store and do not need the width of a shipping container — they need length.
The real advantage is how it gets to where it is going. The whole structure arrives as flat panels and bolts together on site, so it can be built in positions no crane or HIAB will ever reach: behind a building, down a side alley, inside an existing structure, or on a sports field with no hard access. Nothing needs lifting equipment. Be realistic about manpower though — with 4 m panels you will want four to six able people to carry components from the drop-off point to the build position.
Green powder coating keeps it discreet, which matters on a playing field, in a garden or anywhere a corrugated steel box would be unwelcome. Doors can be fitted at both ends for through-loading, and there is no limit to how many units you can chain together — though note that flat pack stores link in one direction only, so a structure is either end-on-end or side-by-side, never both.
Specifications
| External Length | 7.86 m (25 ft 9 in) |
|---|---|
| External Width | 2.14 m (7 ft 0 in) |
| External Height | 2.09 m (6 ft 10 in) |
| Internal Length | 7.56 m (24 ft 10 in) |
| Internal Width | 1.99 m (6 ft 6 in) |
| Internal Height | 1.95 m (6 ft 5 in) |
| Door Width | 1.25 m (4 ft 1 in) |
| Door Height | 1.88 m (6 ft 2 in) |
| Weight (Flatpacked) | 842 kg (1,856 lb) |
| Weight Heaviest Part (when Demounted) | 153 kg (337 lb) |
What is in the bundle
- 2 x 4 m flat pack stores plus 1 end-linking kit

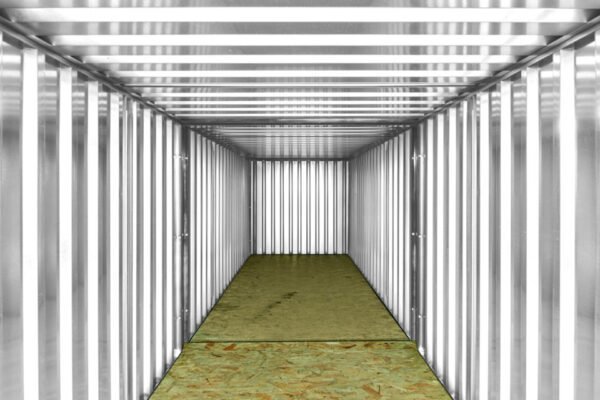

- 7.56 m (24 ft 10 in) continuous internal length
- Green powder-coated finish for discreet siting
- Bolts together on site from hand-carried panels — no crane or HIAB needed
- Heaviest single component 153 kg (337 lb); 842 kg (1,856 lb) flat-packed total
- Allow four to six people to move 4 m panels to the build position

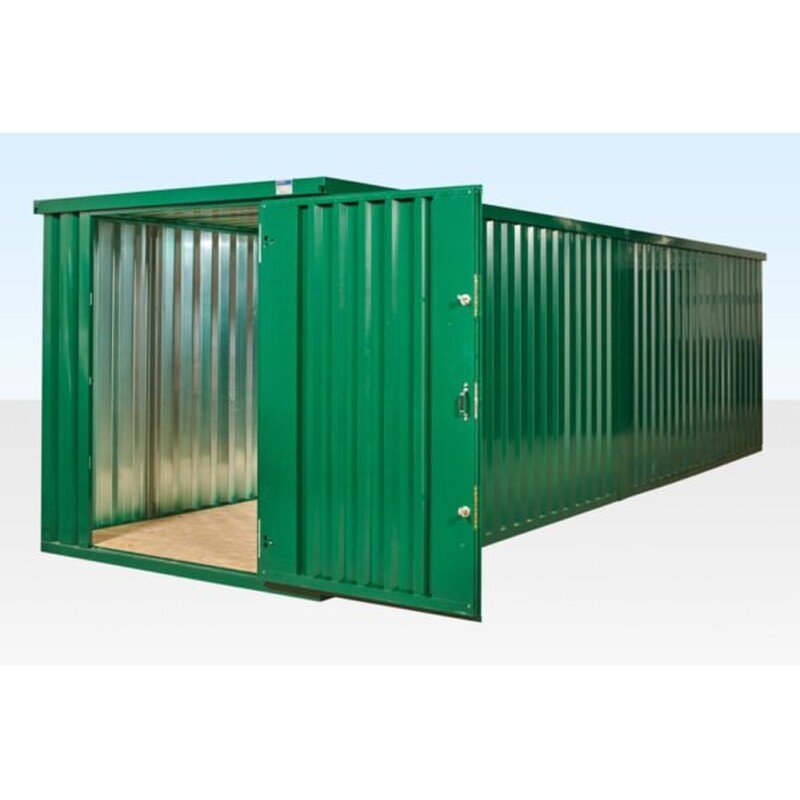

- Doors can be fitted at both ends for through-loading
- Can be combined with 2 m, 3 m and 4 m stores to make any length
- Dismantles and relocates whenever you need it to
- Links in one direction only — end-on-end or side-by-side, not both
- Covered by our standard 12-month warranty
Access, Delivery and Related Linked Bundles
Utility contractors, self-employed trades and sports clubs choose this configuration when the material is long but the site is tight. Allow four to six people to move the 4m panels from the drop-off point to the build position; our delivery and shipping policy sets out how flat pack loads arrive. For a shorter run, the 6m x 2.1m end linked bundle gives 5.7m inside, and if width matters more than length the 4m x 4.2m side linked bundle opens the stores out sideways instead. Individual stores and link kits to extend the run are listed under flat pack containers; request a quote with your site plan and we will confirm the combination.
