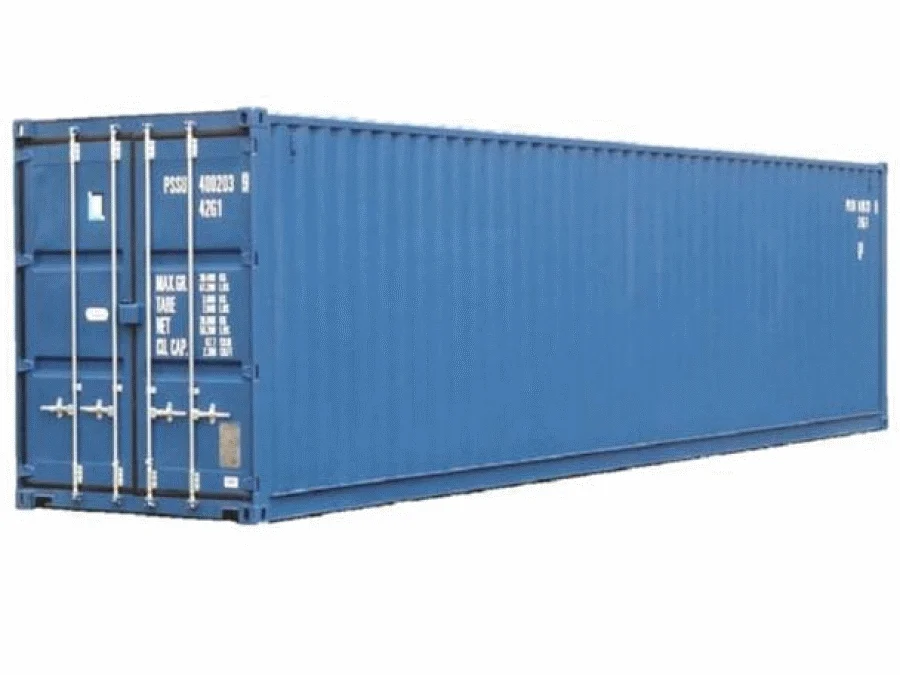

40Ft X 8Ft One Trip Tunnel Container Double End Door

Description

• NEW – One Trip Only
• CSC plated (gross weight) max: 30 ton
• All ‘Cor-Ten Steel’ construction
• 4 Vents
• Exterior hinged double doors at each end
• Two locking bars on each door
• Factory fitted lockbox on each end
• 2 x forklift pockets on each side
• 28mm Marine Plywood floor on steel cross members

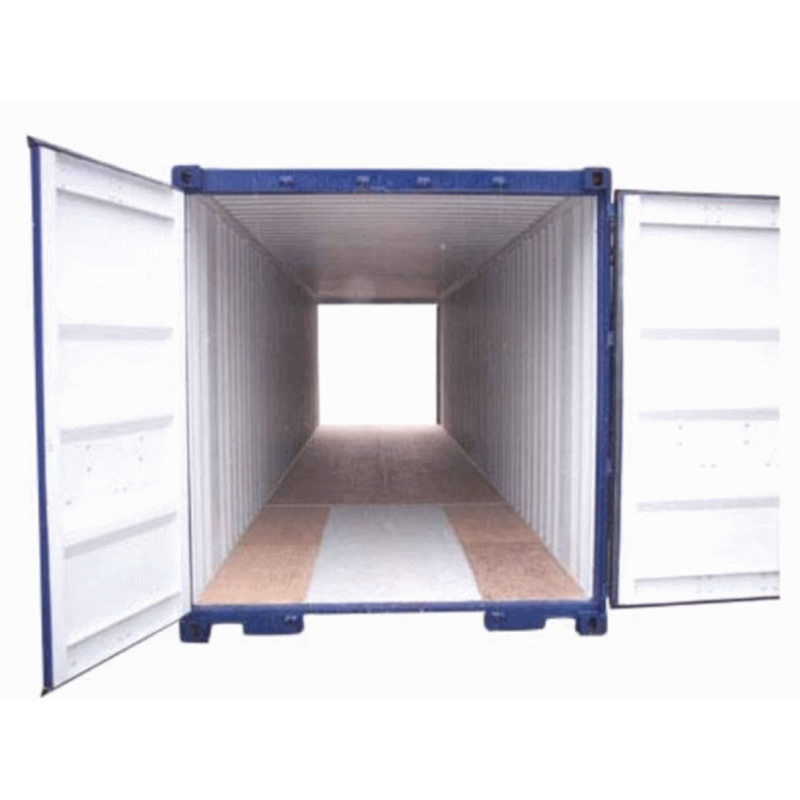

This 40ft x 8ft one trip tunnel container has hinged double doors at both ends rather than one, which is what the term “tunnel” refers to. Having doors at each end changes how the container can be used on site: goods can be loaded from one end and drawn out from the other, long items can be passed straight through, and the shell can be partitioned into two independently locked halves for separate teams or tenants.

As a one trip unit, the container has carried cargo on a single ocean voyage only, so the Cor-Ten steel, paint and 28mm marine plywood floor are all close to new condition. It remains CSC plated to a 30 ton gross weight, so it is suitable for shipping as well as static storage.

Common Applications

• Drive-through or pass-through storage where access is needed from two directions
• Splitting one container into two secure compartments, each with its own factory fitted lockbox
• Storing long materials such as pipe, timber or steel that will not turn inside a single-door unit
• Workshop and event conversions that need through-flow rather than a dead end

Handling and Security

• Two forklift pockets on each side for repositioning on hard standing
• Two locking bars on every door leaf, with a factory fitted lockbox at each end
• 4 vents fitted to reduce condensation build-up during storage

Related Tunnel and Double Door Units

If the site cannot take a full 40ft footprint, the 20ft tunnel container with double end doors offers the same layout in half the length. For a tunnel shell that has already been fitted out, see the 40ft tunnel container mobile workshop.

Tell us your preferred door orientation and color on the quote request page. Everything else is listed in the shipping container category.
