Description

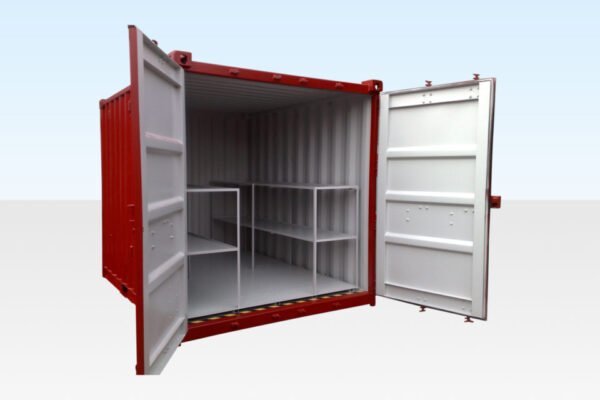

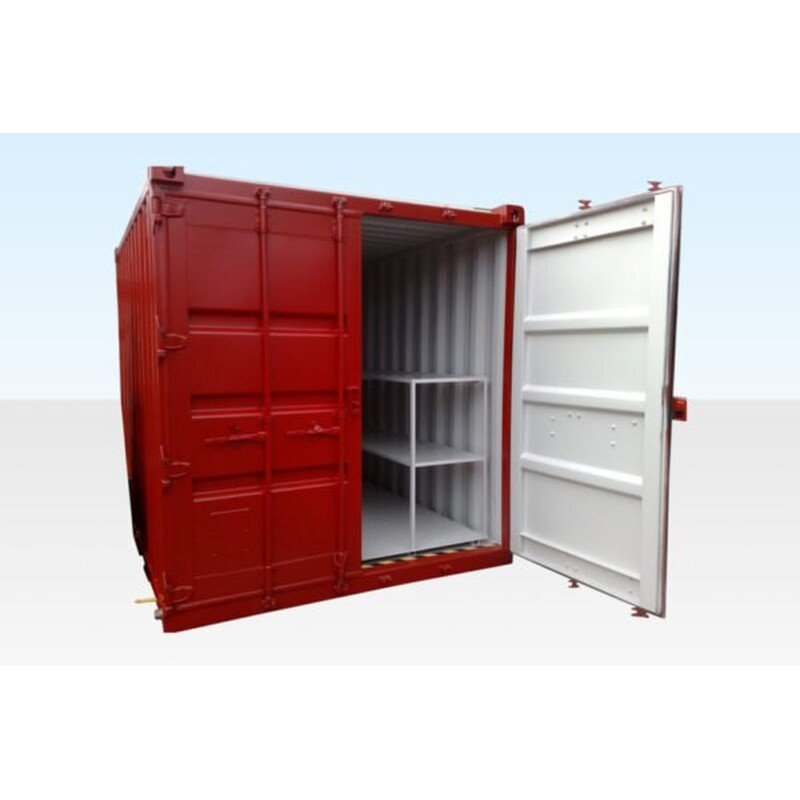

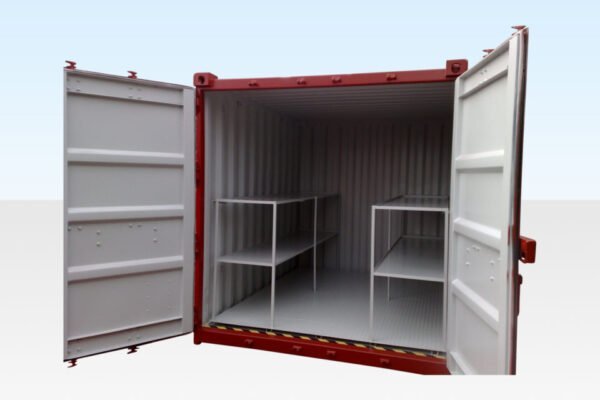

10ft Flat Floor Bunded Store
The compact flat-floor containment store, built new from a one-trip 10 ft shell. A 3 mm Durbar checker plate deck is welded into the container so the base itself forms the containment tray — there is no separate liner to split or lift.
Because the surface is solid, drums stand directly on the plate. That has a genuine advantage over a mesh deck: any leak sits on the same working surface you are looking at, so it is spotted immediately rather than accumulating out of sight in a sump. The trade-off is that stored containers stand in their own spill until it is cleared, which is why the flat floor suits stores where leaks are occasional rather than expected.
The checker pattern gives grip underfoot on a surface that may be wet, and the level deck means drums can be wheeled straight in rather than lifted over a lip. Twelve vents provide through-ventilation sized to the smaller internal volume.
Specifications
| External Length | 2.99 m (9 ft 10 in) |
|---|---|
| External Width | 2.44 m (8 ft 0 in) |
| External Height | 2.59 m (8 ft 6 in) |
| Internal Length | 2.84 m (9 ft 4 in) |
| Internal Width | 2.35 m (7 ft 9 in) |
| Internal Height | 2.39 m (7 ft 10 in) |
| Door Width | 2.34 m (7 ft 8 in) |
| Door Height | 2.28 m (7 ft 6 in) |
| Weight | 1470 kg (3,241 lb) |
| Floor Type | Steel Bunded Floor |
Build and fittings

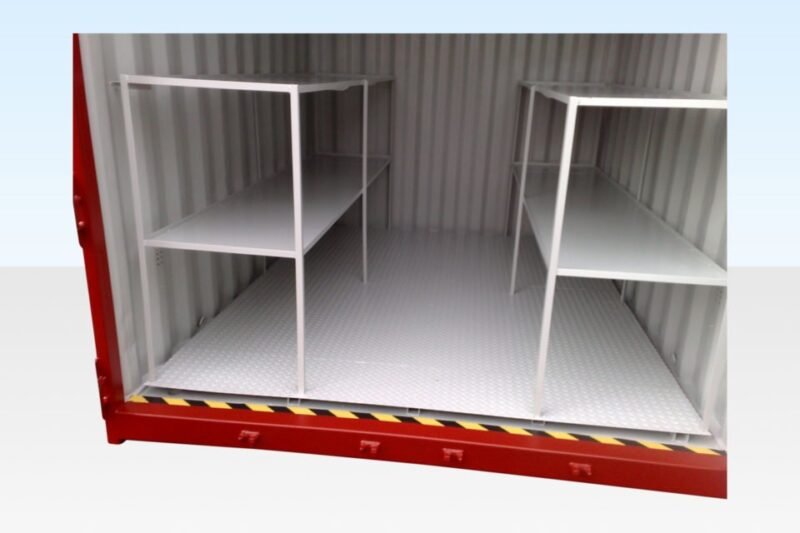

- 3 mm (0.12 in) Durbar checker plate floor welded in as the containment tray
- Level deck throughout — drums wheel straight in
- Checker pattern for grip on a wet surface
- Spills remain visible on the working surface
- Built from a new one-trip container
- Cor-Ten steel construction
- 12 vents for through-ventilation
- Exterior hinged double doors at one end, two locking bars per leaf
- Factory-fitted lockbox
- Forklift pockets
- Covered by our standard 12-month warranty
Flat Floor or Mesh Floor — Which Applies to You
This is the flat floor version: a 3mm Durbar checker plate deck welded into the container to form the containment tray itself. Because the surface is solid, drums and containers are stood directly on the plate and any leak sits on that same working surface, where it is immediately visible and can be mopped or pumped out. That suits low-volume storage, part-used containers, and situations where you want to see a spill the moment it happens rather than find it in a sump. The checker plate also gives grip underfoot and takes point loading from drums and small plant far better than a plywood floor.
Why 10ft Suits Compound Storage
At just under 3m long the unit fits into compound corners, yard set-downs and depot walkways where a 20ft box will not turn. It stays craneable and, with forklift pockets on both sides, can be repositioned as a site layout changes. The 12 vents give continuous passive airflow for goods that give off vapour, while the factory-fitted lockbox and twin locking bars protect the contents on an unmanned site.
Compare the Bunded Range
If you would rather have drums standing clear of any spillage, the 10ft open mesh floor bunded store puts a galvanised deck over a 300mm sump in the same footprint, and the 10ft raised bunded store is a further alternative. For larger volumes, step up to the 20ft open mesh floor bunded store. Browse the wider storage container range, or request a quote and we will confirm current lead time and delivery.
