10Ft X 8Ft Open Mesh Floor Bunded Store

Description

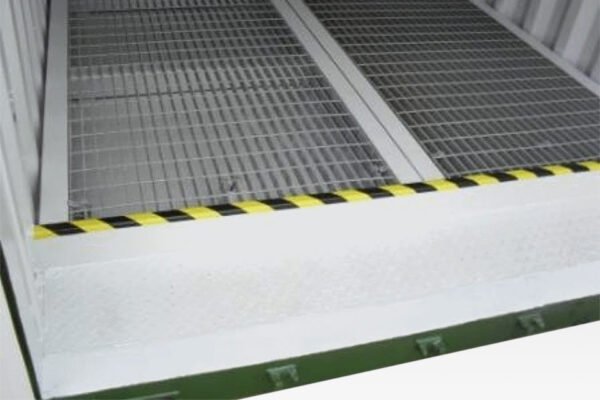

The most thoroughly specified of our 10ft containment stores, and the only one that separates the stock from the spill entirely. Three layers do three jobs: a welded 3 mm Durbar plate floor seals the base, a 300 mm bund holds the volume, and a galvanised open mesh deck rated to 7.5 kN/m² carries the drums above both. Anything that leaks passes straight through the mesh into the sump, where it can be seen and pumped out without touching the stored goods.

Dimensions

• External: 2.99 × 2.44 × 2.59 m (9 ft 10 in × 8 ft 0 in × 8 ft 6 in)
• Internal: 2.84 × 2.35 × 2.39 m (9 ft 4 in × 7 ft 9 in × 7 ft 10 in)
• Door opening: 2.34 × 2.28 m (7 ft 8 in × 7 ft 6 in)
• Weight empty: 1,620 kg (3,571 lb)
• Deck rating: 7.5 kN/m² (157 lb/ft²)

Build and fittings

• Built from a new one-trip container in Cor-Ten weathering steel

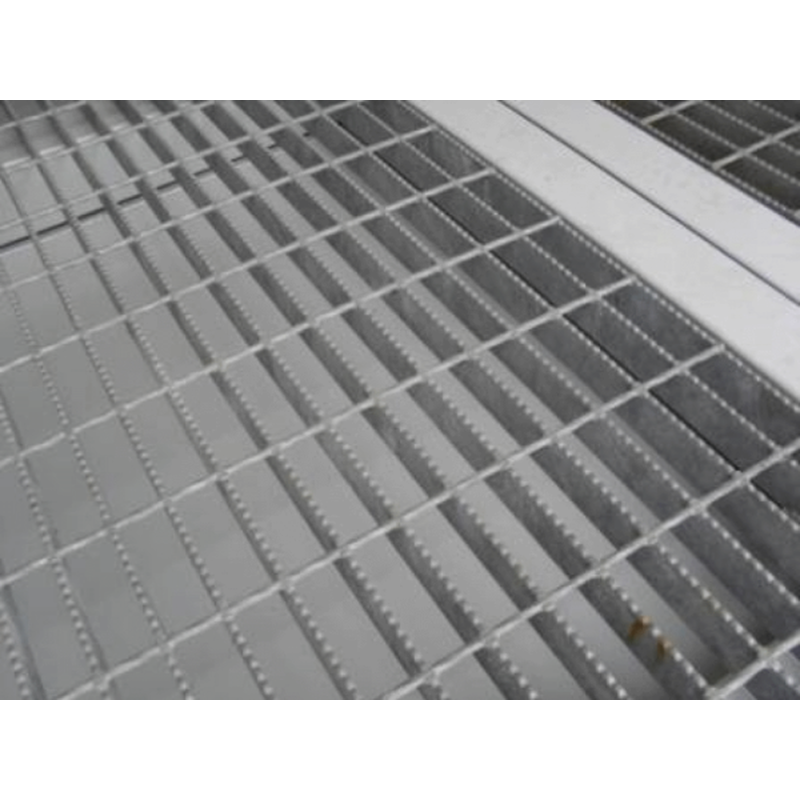

• Galvanised open mesh deck rated to 7.5 kN/m²
• Raised bund of 300 mm (11.8 in) sitting beneath that deck
• Durbar plate floor, 3 mm (0.12 in), welded in to seal the sump
• Sump can be inspected through the deck without shifting stock
• Exterior hinged double doors, two locking bars per leaf
• Factory-fitted lockbox
• 12 vents for through-ventilation

Why separating stock from spill is worth paying for

A drum standing in a pool of whatever leaked out of the drum next to it is a problem that compounds. Steel drum bases corrode from underneath, labels lift and become unreadable, and pallets soften — so a single small release can put a whole run of stock into a condition where it cannot be moved on, sold or safely handled. Lifting everything onto a mesh deck removes that entirely. It also changes the inspection routine from something that requires unloading into something done with a torch through the mesh in a few seconds.

The 7.5 kN/m² rating is what makes the mesh usable rather than decorative: it is what carries loaded drums and small IBCs as point loads rather than a distributed weight.

Suited to

• Stores worked regularly, where decanting and drum handling are daily
• Aggressive materials that would attack a drum standing in them
• Satellite stores kept near the point of use rather than centralised
• Compact pitches — 2.99 m external still fits where a 20ft will not

Specification depends on the substance

Containment volume and signage requirements vary with what is stored, in what quantity, and with the rules that apply at your site. This listing describes what we build; it is not a determination that a given arrangement satisfies your obligations. Send us the details and we will confirm what we can supply.

Delivery, ground and cover

We deliver free across the UK, Northern Ireland, the Isle of Man, Jersey and Guernsey included, with no VAT added at checkout — the price shown is the price paid. The store leaves a depot on a tilt-bed at 1,620 kg and needs firm ground that is genuinely level, since a bund out of level does not hold its rated volume evenly. Keep a straight approach behind the drop point; a crane offload can be arranged where a tilt-bed cannot reach, agreed in writing before delivery. The conversion carries 12 months on workmanship and the one-trip shell 12 months against structural defects and water ingress. Separately, you have 14 days to change your mind under the Consumer Contracts Regulations 2013 and a 30-day right to reject faulty goods under the Consumer Rights Act 2015.

Other bunded stores

Prefer a solid working surface underfoot? The 10ft flat floor bunded store lays down the same Durbar plate with no mesh over the top, while the 10ft raised bunded store puts a solid floor above the tray instead. Growing drum numbers usually point towards the 20ft open mesh floor bunded store, which doubles the deck area. Conversions of a similar kind sit in the modified container range, or ask us for a quote.
