Description
20ft Open Side Bunded Store — Open Mesh Floor
This combines two things that are usually specified separately: full side access, and spill containment. Double hinged doors run the length of one side as well as across the end, while the working floor is a galvanised open mesh deck suspended over a sealed sump.
The mesh is the point. Anything that leaks from a drum or an IBC drops straight through to the containment tray below rather than pooling around the base of the container it came from — and because the deck is open, a spill is visible from above during a routine walk-round instead of being discovered when something is moved.
Pairing that with side doors means a forklift can place and retrieve drums anywhere along the length without reaching over other stock, which is what makes the store workable day to day rather than just compliant. Built from a one-trip shell, with 24 vents for through-ventilation, a factory-fitted lockbox and twin locking bars.
Containment volume, ventilation and signage requirements vary by substance and by state and local rules — tell us what you are storing and we will confirm the specification before you order.
Specifications
| External Length | 6.06 m (19 ft 11 in) |
|---|---|
| External Width | 2.44 m (8 ft 0 in) |
| External Height | 2.59 m (8 ft 6 in) |
| Internal Length | 5.95 m (19 ft 6 in) |
| Internal Width | 2.29 m (7 ft 6 in) |
| Internal Height | 2.39 m (7 ft 10 in) |
| Door Width | 2.34 m (7 ft 8 in) |
| Side Door Width | 5.82 m (19 ft 1 in) |
| Door Height | 2.28 m (7 ft 6 in) |
| Weight (kg) |
Build and fittings
- Galvanised open mesh deck over a sealed containment sump
- Spills fall clear of stored drums and are visible from above

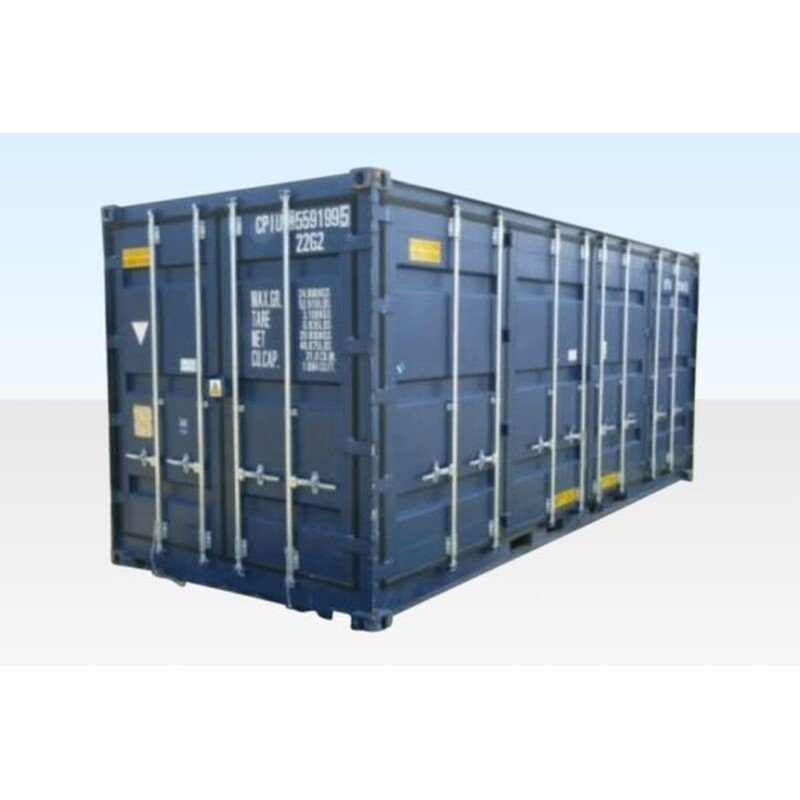

- Double hinged doors along one full side, plus double doors at the end
- Direct forklift access to any position along the length
- Built from a new one-trip container
- 24 vents for through-ventilation
- Cor-Ten steel construction
- Two locking bars per door leaf
- Factory-fitted lockbox
- Containment and signage requirements vary by substance and jurisdiction — ask us to confirm
- Covered by our standard 12-month warranty

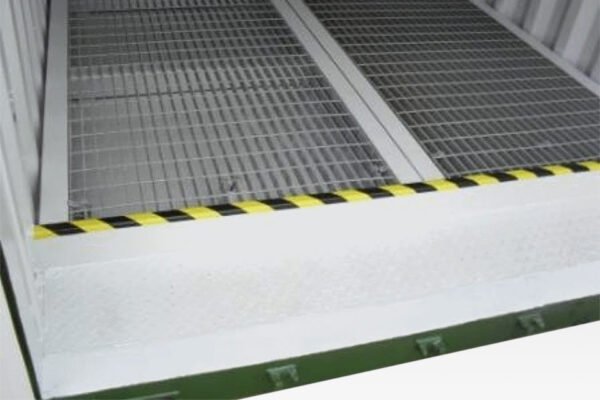

How the Bunded Mesh Floor Works

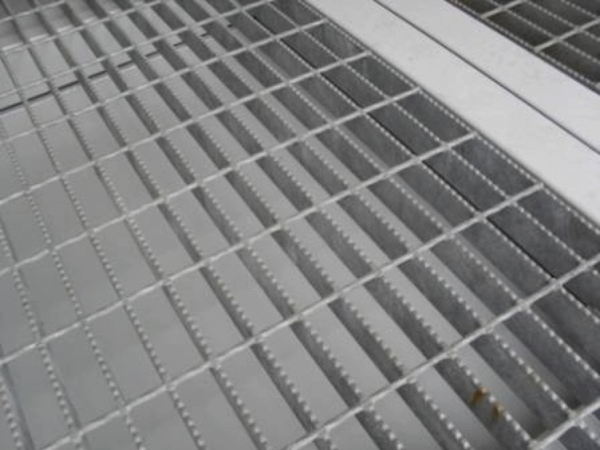

Drums and IBCs sit on a galvanised open mesh deck rather than directly on the container floor. Anything that leaks or drips passes through the mesh into the sealed sump beneath, so a spill is captured below the storage level instead of spreading across the floor where staff are walking and handling. Because the deck is open, the sump can be inspected without unloading the stock above it, and the mesh itself is rated to 7.5kN/m2 for loaded pallet work.

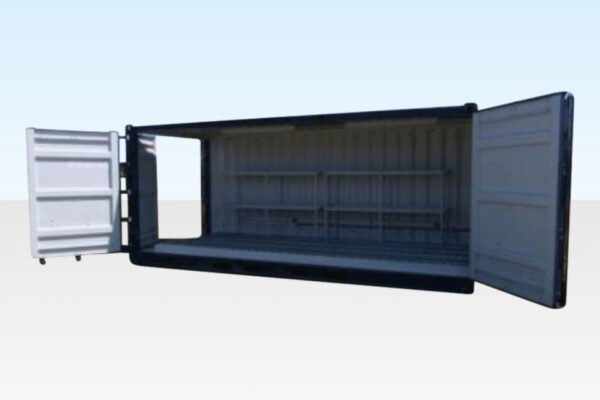

Why the Side Doors Matter on a Bunded Store
Handling drums through a single end opening means shuffling everything in front of the item you actually want. With a 5.82m side opening, a forklift or drum trolley reaches any position on the deck directly, which cuts manual handling and keeps the stored layout organized. The 24 vents give the through-draught needed for storing goods that give off vapour, and the factory-fitted lockbox plus twin locking bars on every door secure the unit when it is left on an open site.
Compare Other Bunded Configurations
If you do not need full side access, the standard 20ft open mesh floor bunded store offers the same sump and deck through end doors only, and the 10ft open mesh floor bunded store suits smaller drum quantities or tight compound space. Where goods must be kept off a bund but still contained, buyers often look at the 20ft raised bunded store instead. Browse the wider range of open side containers, or request a quote and our team will confirm current availability and delivery.
